Pushbuttons, Selectors, Pilot Lights  Command Switches [view large image]

These pushbutton switches comply with various international standards, so they can be reliably used as emergency stop devices. Emergency stop pushbutton switches with IP2X -compliant terminals are also available.
Standard models feature illumination with high brightness LEDs. No adjusting of panel thickness is necessary. The button and lens can be mounted on a panel while the operator is engaged. Easy replacement of contact block and transformer as well as wiring from two directions is possible. The shortest among industrial pushbuttons. A terminal cover is provided, assuring safety and security. The Emergency Stop pushbuttons employ FUJI’s original Trigger Action mechanism.
They are suitable for emergency stop and safety. They are mountable even on panel cutout 25mm diameter. AR22 and DR22 series of the ø22 Command Switches are approved by UL/CSA CCC and TÜV (EN standard).
The Command Series offer high brightness for more vivid colors. Newly added blue and pure white LEDs improve visibility. Transformer-free design for lighter structure and shorter depth (for 100-V and 200- V models). Possible to make easy color and voltage changes. UL/CSA-compliant models also available.

Features & Benefits

Miniaturization

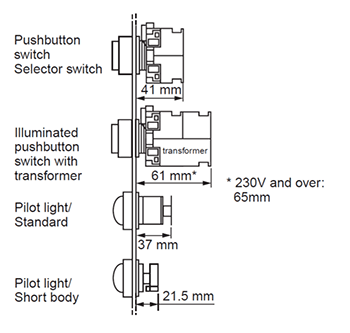

  • Pushbuttons and selector switches with 1NO+1NC: 41mm deep

    Pilot lights: 37mm deep

  • The transformer now occupies far less space.

Easy replacing contact block and transformer

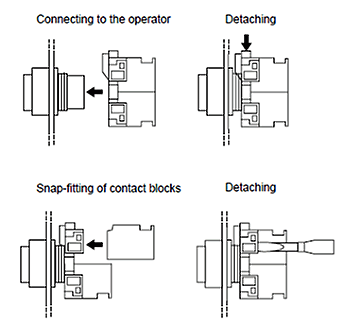

  • Because of a snap-on mounting, replacement or addition of the contact block and transformer unit is very simple.

  • The contact block is common to all the pushbuttons of this series.

  • Contact block is easily replaced even when the pushbuttons are mounted closely together.

  • Replacement of the contact block can be done with a screwdriver, without the need for any special tool.

Wiring

  • Wiring from two directions is possible.

  • Wiring in both vertical and lateral directions facilitates wiring in narrow spaces.

  • Color coding of contact blocks makes wiring easy.

    1NO: Blue, 1NC: RedLamp terminal andtransformer unit: Black

Safety

  • A terminal cover is provided, assuring safety and security.

  • FUJI’s original Trigger Action mechanism is used in the emergency stop pushbuttons.

    They are suitable for emergency stop and safety.

    This mechanism prevents the contacts from moving until the button is pushed and locked.

  • Reliability of safety functions increased by integrated operator and contact block construction. (AR22VG)

Protection

  • Excellent oil-tight construction (IP65) of the operator.

  • Closure of the contact block has been improved.

Documentation

pdf-1 Pushbuttons, Selectors, Pilot Lights  Command Switches
